ADAM Audio A8X
The A8X adds to the AX-Series as a unique model because its power and radiation characteristics allow it to be used as both a nearfield and midfield monitor. It represents a particularly attractive entry-level model for midfield monitoring which offers transparent reproduction of higher frequencies, clear mids and an excellent transient response.
The extra large, front-positioned bass reflex ports are perfectly matched with the bass/midrange driver that has a 1.5″ voice coil. Thus the A8X can play very low registers with a powerful punch, and the greatest possible precision. The 150 Watt PWM amplifier for the midrange speakers in conjunction with the 50 Watt A/B tweeter amp enable the A8X to generate impressive maximum sound pressure levels of 120dB per pair at one meter.
German Handmade Precision X-ART Tweeter
8.5“ Woofer (Carbon/Rohacell/Glass Fiber)
Amp. Power RMS / Music: 200 W / 300 W
Frequency Response: 38 Hz - 50 kHz
Max. SPL per pair at 1 m: ≥120 dB
Gallery

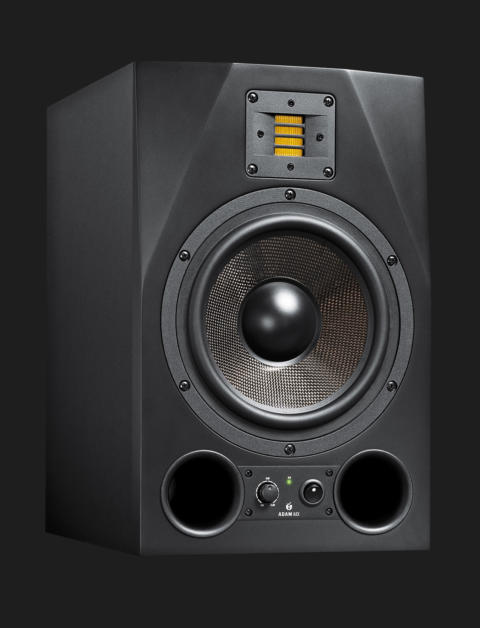

This is the front view.

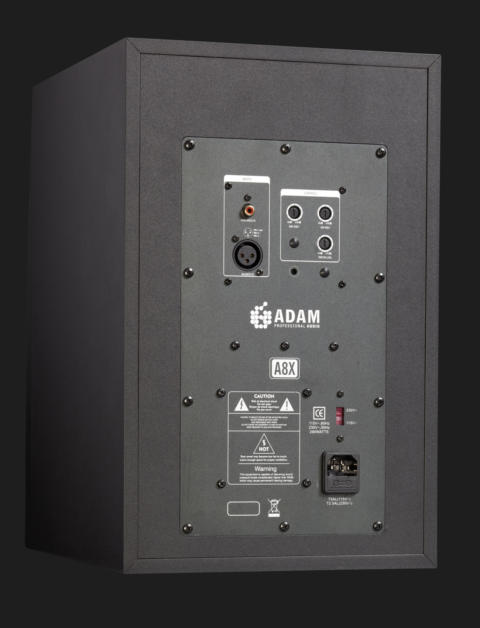

This is the back view.
Features & Benefits
Product Feature | Benefit to the customer |
|---|---|
| X-ART tweeter, handmade in Berlin |
|
| The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane | Direct, fast response in the high-range even with complex transients |
| Ultra-light but extremely dimensionally stable woofer material (Carbon/Rohacell/Glass fiber) | Excellent transient response even at high sound levels without breakup of the diaphragm |
| Vertical 2-way system with 8.5” woofer | High resolution of the stereo image |
| Spacious bass reflex ports on the front |
|
| Highly efficient PWM amplifier for the woofer coupled with an A/B amplifier for X-ART tweeter | Low-distortion amplification at both low and high volume levels |
| Linear frequency response of 38 Hz to 50 kHz | Unbiased reproduction in a very wide frequency band |
| Maximum peak sound pressure per pair in 1 m ≥ 120 dB | Powerful, compression-free sound reproduction even at very high sound levels |
| Simple, stepless room acoustic adjustments over tweeter gain, low and high shelf filters | Allows optimal adaptation to acoustically difficult listening environments |
| Analog XLR and RCA inputs | Optimized for balanced and unbalanced line signals |
| Acoustically optimized cabinet geometry | Reduction of unwanted reflections on the cabinets |
| Directional sound radiation in vertical plane | Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc. |
| Volume control and on/off switch on the front | Very easy to use |
| 2 years warranty with optional extension to 3 years with the registration of the product | Full repair service if required for 5 years |
Technical Data
Woofer
| Number | 1 |
| Basket Ø | 8.5" (220 mm) |
| Voice Coil Ø | 1.5" (38 mm) |
| Cone Material | Carbon/Rohacell/Glass Fiber |
Tweeter
| Number | 1 |
| Type | X-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
Built-in Amplifiers
| Woofer | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 150 W / 225 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. Power RMS / Music | 50 W / 75 W |
Control Panel
| Input Sensitivity | -∞ to +14 dB |
| High Shelf EQ > 5 kHz | ±6 dB |
| Low Shelf EQ < 300 Hz | ±6 dB |
| Tweeter Gain | ±4 dB |
Input Connectors
| Analog | XLR / RCA |
General Data
| Frequency Response | 38 Hz - 50 kHz |
| THD 90 dB / 1 m > 100 Hz | ≤0.5 % |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m | ≥112 dB |
| Max. SPL per pair at 1 m | ≥120 dB |
| Crossover Frequencies | 2300 Hz |
| Input Impedance | 30 kOhm |
| Weight | 28.7 lb (13 kg) |
| Magnetically Shielded | No |
| Height x Width x Depth | 15.5" (400 mm) x 10" (255 mm) x 12.5" (320 mm) |
| Panel | Front |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, manual |
