Sub8
SubwooferBuy onlineADAM Audio Sub8
The Sub8 is a small yet powerful subwoofer designed to extend the low frequency capabilities of any nearfield monitoring system down to 30Hz.
It houses a robust 8.5″ woofer with a 1.5″ voice coil driven by a 160W ICE power amplifier. This amp combines low heat generation with high performance to handle maximum power levels, even during long mix sessions.
The front baffle features two motorized knobs that let you tailor input level and crossover frequency settings. These settings can also be controlled via the included wireless remote, allowing you to optimize your sound reproduction from your ideal listening position.
The Sub8 is designed for smaller rooms up to 20 square meters. It is an ideal match for the ADAM Audio AX-Series and the S2V nearfield monitors.
8.5“ Subwoofer (paper)
Amp. Power RMS / Music: 160 W / 240 W
Frequency Response: 28 Hz - 150 Hz
Max. peak SPL at 1 m: ≥110 db
Remote Control
Gallery

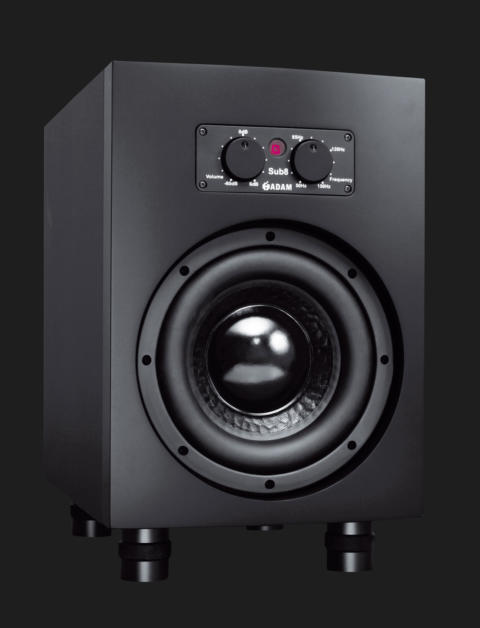

This is the front view

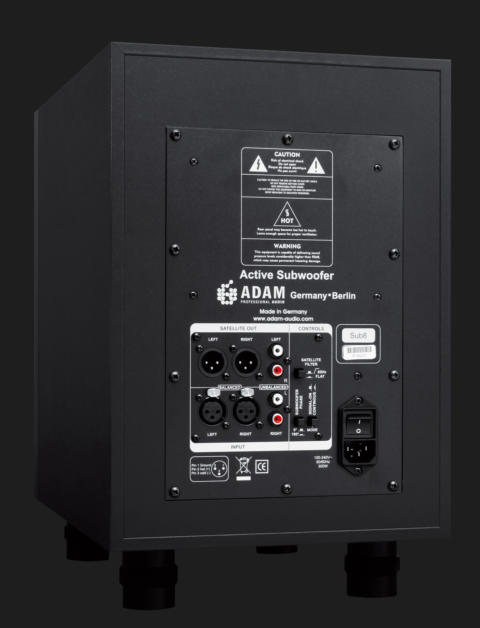

This is the back view
Features & Benefits
Product Feature | Benefit to the customer |
|---|---|
| Linear bass reproduction down to 28 Hz | Ideal addition to nearfield monitors |
| Maximum Peak sound pressure in 1 m ≥ 110 dB | Powerful, compression-free sound reproduction even at very high sound levels |
| High efficiency PWM amplifier | Low-distortion amplification at both low and high volume levels |
| Special 8.5" woofer with paper diaphragm | Unrestricted bass reproduction for low-fatigue operation |
| Easy manual or automatic (de-)activation | If desired, monitoring is possible without the low frequencies |
| Upper cut-off frequency is selectable between 50 - 150 Hz | Allows optimal adaptation of the total system on the bass performance of the satellites |
| Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz |
|
| Remote control (contained in the delivery contents) | Comfortable control in any situation |
| Analog XLR and RCA inputs | Optimized for balanced and unbalanced line signals |
| Compact cabinet dimensions | Flexible positioning in room for optimal sound results |
| 2 years warranty with optional extension to 3 years with the registration of the product | Full repair service if required for 5 years |
Technical Data
Subwoofer
| Number | 1 |
| Basket Ø | 8.5" (210 mm) |
| Voice Coil Ø | 1.5" (38 mm) |
| Cone Material | Paper |
Built-in Amplifiers
| Subwoofer | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 160 W / 240 W |
Input Connectors
| Analog | XLR / RCA |
General Data
| Frequency Response | 28 Hz - 150 Hz |
| THD > 60 Hz | ≤1 % |
| Max. peak SPL at 1 m | ≥110 dB |
| Crossover Frequencies | 50 - 150 Hz |
| Input Impedance | 10 kOhm |
| Panel | Front |
| Weight | 26.5 lb (12 kg) |
| Height x Width x Depth | 16" (410 mm) x 10" (260 mm) x 15" (380 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Remote control, batteries (2 x AAA), power cord, manual |
Additional information
- The Benefit Of Using A Subwoofer [Video]
