Overview

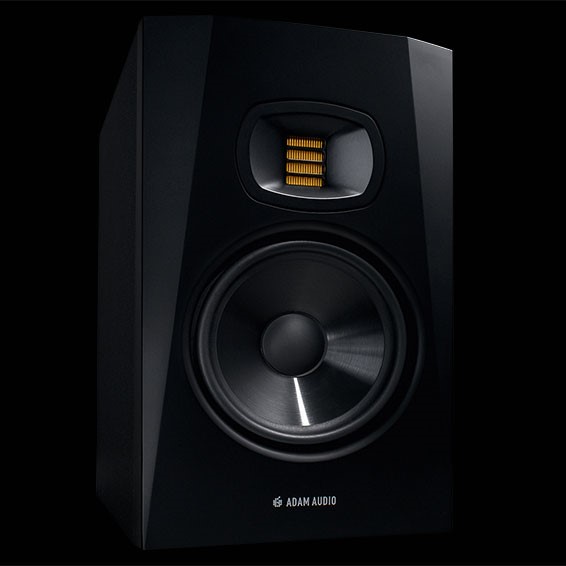

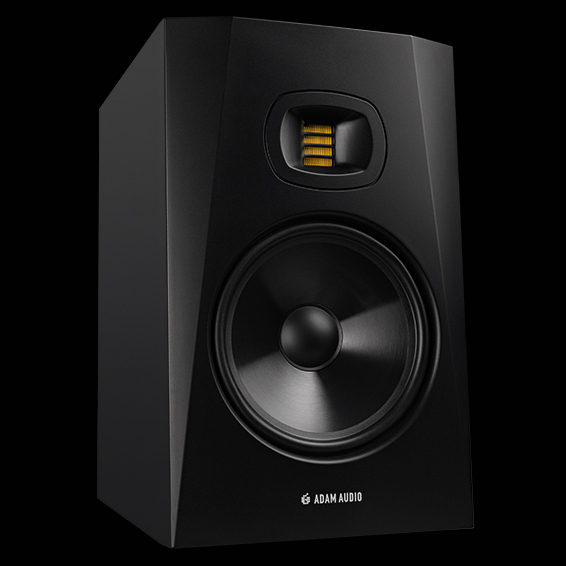

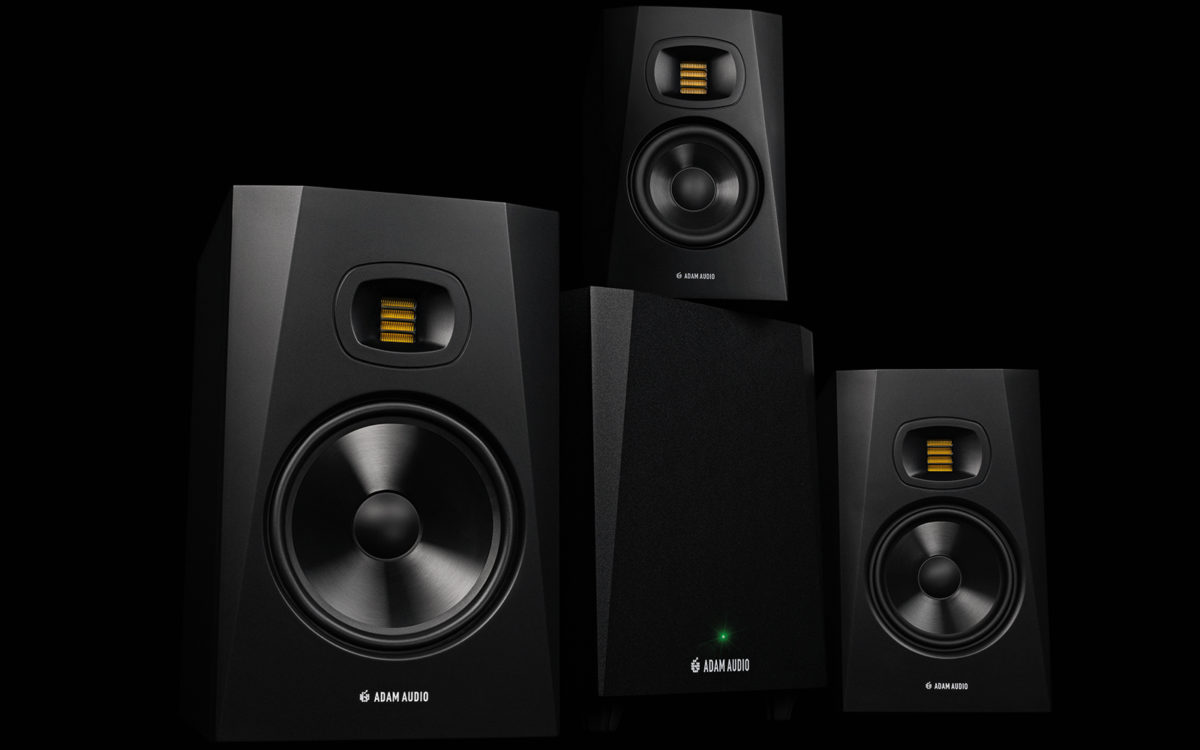

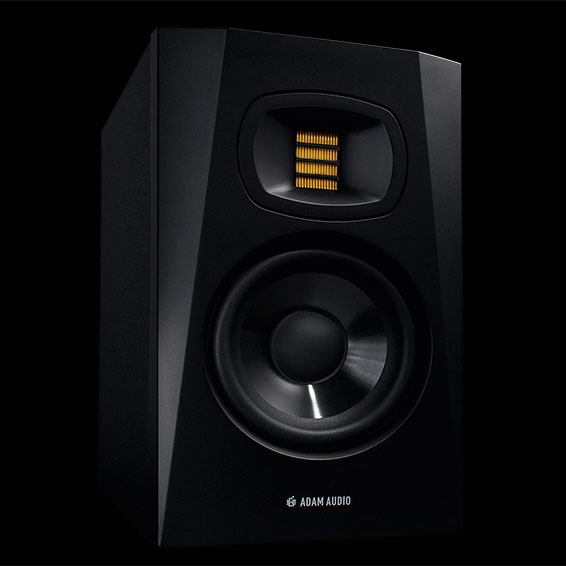

The T Series is ADAM Audio’s range of affordable, professional 2-way powered studio monitors, offering extremely high performance and is comprised of three models: the T5V, the T7V and the all new T8V (using a 5″, 7″ and 8″ woofer respectively).
All models use the same U-ART high-frequency driver (Unique Accelerated Ribbon Tweeter); feature a beveled cabinet design, rear-firing bass reflex port, built-in DSP-controlled driver crossovers and equalization, and multi-way analog connections.

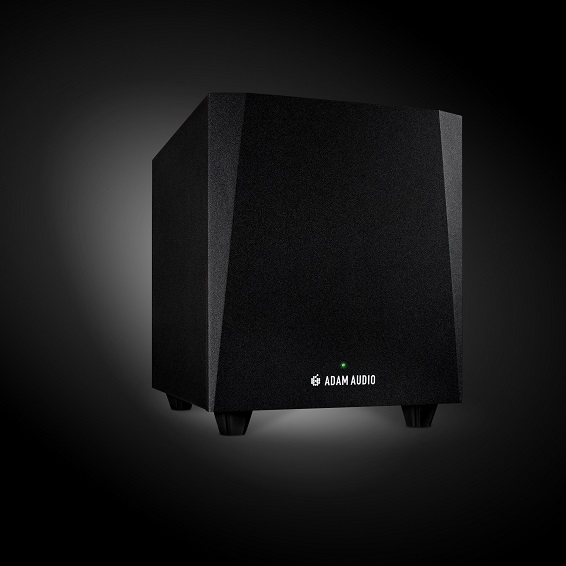

Their wide frequency response, high dynamic range, excellent transient response and wide sweet spot make these monitors perfectly suited for use in small control rooms for music production, video post-production and radio broadcast. The performance, features and connectivity of the ADAM Audio T10S subwoofer are engineered specifically to complement ADAM Audio’s T5V and T7V speakers. Due to its attractive price point, the T Series monitors allow the user to do great work on a modest budget.
- Newly developed U-ART Tweeter with HPS waveguide
Many of the technical innovations implemented in our flagship S Series range have been leveraged for use in the T Series line. The design for the T Series’ new U-ART 1.9” tweeter is based on that used in ADAM Audio’s X-ART and S-ART tweeters employed respectively in the company’s iconic AX Series and S Series powered monitors. The U-ART tweeter is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors.
- New Class D amplifiers and DSP powered room EQs
Both T Series monitors also feature new Class D amplifiers [20 W for the tweeter and 50 W for the woofer], universal power supplies, and built-in DSP driver crossovers that are derived from technological advances achieved in the design and production of the S Series line. On the rear panels of the T5V and T7V, an XLR connector and RCA jack respectively accept +4 dBu balanced and unbalanced -10 dBV inputs. An associated 2-way switch selects which connector receives an input signal. The T5V and T7V can automatically accept AC voltages ranging from 100 to 240 V, at 50 to 60 Hz. Thus, the T5V and T7V can be connected to professional and prosumer recording systems, and to both balanced and unbalanced I/O boxes for DAWs – virtually anywhere in the developed world with plug and play ease.
Two 3-way switches boost or cut respective low and high frequencies ±2 dB and also provide a ‘flat’ setting. These EQ switches let you tailor the frequency responses to fine-tune their performance when mounting them on shelves, a table top, or a console bridge, and at various distances from nearby walls.
